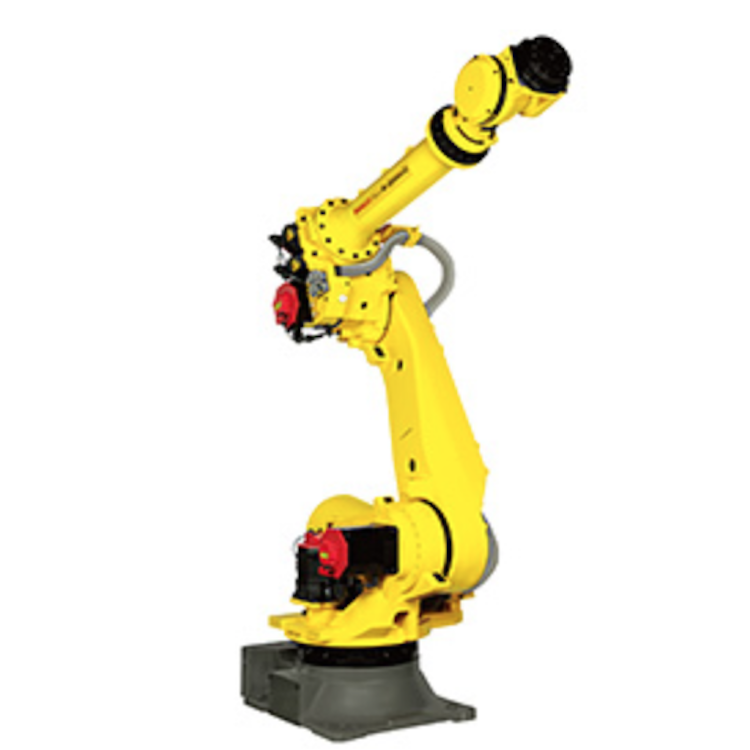

Fanuc robot M-2000iC 6 axis welding industrial robot arm
| DESCRIPTION | ||
| Product name | Fanuc robot M-2000iC 6 axis welding industrial robot arm | |
| Model | M-2000iA | |
| Controlled axes | 6 | |
| Type | Articulated Type | |
| Installation | Floor | |
| Motion range | J1 | 330%(45%) 5.76rad (0.79rad/s) |
| J2 | 160%(30%) 2.79rad (0.52rad/s) | |
| J3 | 165%(30%) 2.88rad (0.79rad/s) | |
| J4 | 720%(50%) 12.57rad (0.87rad/s) | |
| J5 | 240%(50%) 4.19rad (0.87rad/s) | |
| J6 | 720%(70%) 12.57rad (1.22rad/s) | |
| Max.load capacity at wrist | 1200kg | |
| Drive method | Electric servo drive by AC servo motor | |
| Repeatability | ±0.18mm | |
| Mass | 8600kg | |
