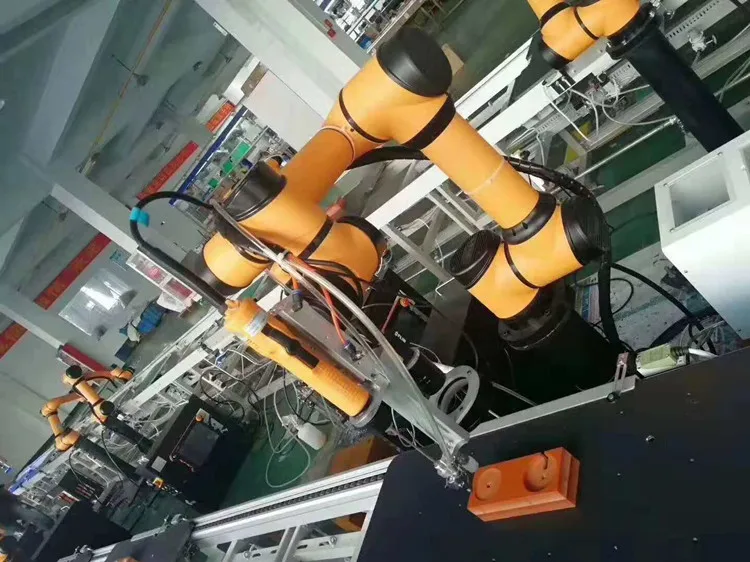

Collaborative robot AUBO i3 6 axis low cost high lifetime mini industrial collaborative robot assembly cobot CHINA
Main Specifications
Maximum reach:832 mm
Maximum payload:3kg
Pose repeatability (ISO 9283):± 0.02 mm
Number of axes:6
Mounting position:Floor/ Ceiling/Wall
Lifetime:30000h
Standard:CE, TUV,KSc
Power consumption:150W
Power supply:DC 48V
I/O port:16 in/16 out
Screen:12 inch Resistive LCD touch screen
| Product Name | Collaborative robot AUBO i3 6 axis low cost high lifetime mini industrial collaborative robot assembly cobot CHINA |
| Application | Collaborative robot AUBO i3 6 axis low cost high lifetime mini industrial collaborative robot assembly cobot CHINA ,main application welding assenbly and stacking ,palletizing collaborative. |
| Model | Aubo i3 |
| Robot Arm | |
| Maximum reach | 832 mm |
| Maximum payload | 3 kg |
| Pose repeatability (ISO 9283) | ± 0.02 mm |
| Number of axes | 6 |
| Mounting position | Floor/ Ceiling/Wall |
| Lifetime | 30000h |
| Weight | 15.5 kg |
| Protection rating | IP54 |
| Standard | CE, TUV,KSc |
| Power consumption | 150W |
| Material | Aluminum alloy |
| Ambient temperature | 0-45°C |
| Environment humidity | 20-85%(No condensation) |
| Power supply | DC 48V |
| Protocol | CAN bus |
| A1 | ±175° |
| A2 | ±175° |
| A3 | ±175° |
| A4 | ±175° |
| A5 | ±175° |
| A6 | ±175° |
| Controller | |
| Size | 380mm*350mm*258mm |
| Weight | 15Kg |
| Cable length | 5m |
| Colour | Black |
| Protocol | Ethernet,Modbus-RTU/TCP |
| Power | 100-240V/AC,50-60HZ |
| Protection rating | IP54 |
| I/O port | 16 in/16 out |
| Teach pendant | |
| Size | 355mm*235mm*54mm |
| Weight | 1.57Kg |
| Screen | 12 inch Resistive LCD touch screen |
| Cable length | 4m |
| Protection rating | IP54 |
| Colour | Orange+black |
