Video technical support, Online support, Field maintenance and repair service
Local Service Location
None
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
PLC
Condition
New
Place of Origin
China
Shanghai
Brand Name
KUKA
Weight
approx. 250 kg
Power
380V
Certification
CE
Warranty
1 Year
Online support

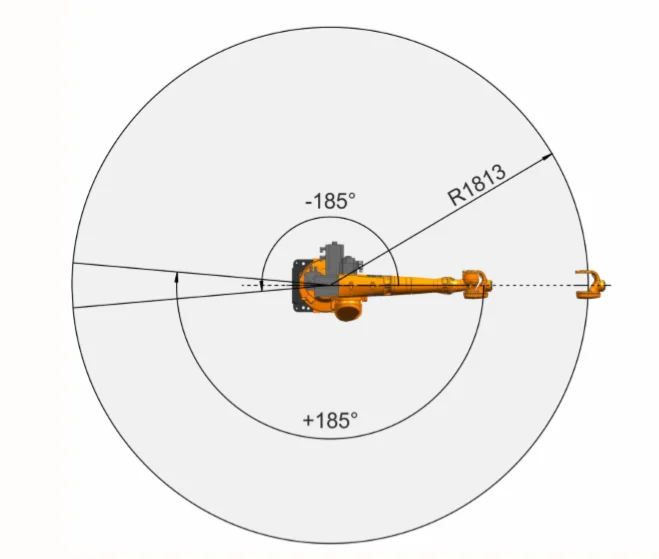

Maximum reach
1813 mm
Rated payload
20 kg
Rated total load
30 kg
Weight
approx. 250 kg
Pose repeatability (ISO 9283)
± 0.04 mm
Number of axes
6
Mounting position
Floor; Ceiling; Wall; Desired angle
Footprint
430.5 mm x 370 mm
Protection rating (IEC 60529)
IP65
Operating conditions
Ambient temperature during operation 5 °C to 55 °C (278 K to 328 K)
Packing & Delivery

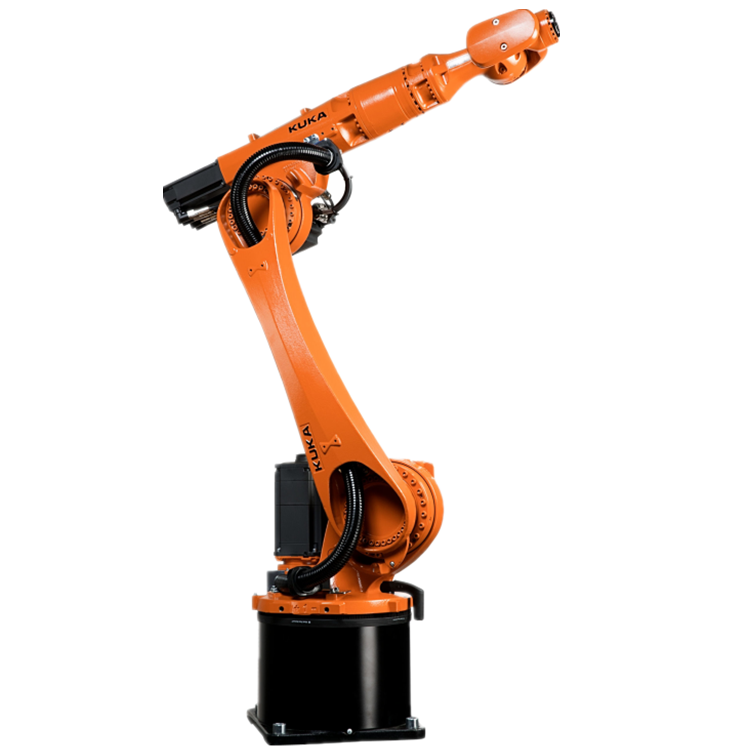

Kuka robot KR 20 R1810 industrial robot arm 6 axis welding robot with laser seam tracking packing with fumigation wooden frame
Company Profile
Xiangjing(Shanghai) Mechnical Electrical Tech. Co., Ltd is is the subcompany of Dr. Industry Group Co., Ltd, was founded in January 2015, We focus on discrete industrial automation and process industrial automation, and we can design, develop, install, testing, debug industrial robot, its units and related accessories including fixture, transmission device, positioning device and control system, we can provide Welding Robot, Spray Painting Robot, Transfer Robot, and Grinding Robot, we have many reference in automation industry in China. Meanwhile we are agent of KUKA , ABB, Yaskawa industrial robots, and distributor of FUNC industrial robot. we are the important partner of them in the China market, we have more than 7 engineers with rich expericence, who had been worked for ABB or KUKA more than 10 years. meanwhile Dr. Industry Group can provide ABB and KUKA robot training for our customer, there are weeekly training courses. In the process of industrial automation field, Xiangjing can provide control valve, actuator, postioner, and regulator, Xiangjing is the improtant partner of Emerson process management in the China market, we are fisher and rosemount project authorized agent in China, we can provide fisher control valve, fisher regulator, rosemount pressure, level, thermal transimtter, rosemount wireless instrument, Daniel Flowmeter, ASCO Solenoid Valve, TopWorx Switch and so on. We have many references on power, chemical industry in China. Xiangjing has two teams, one is for discrete industrial automation and the other is for process industrial automation with rich experience, we are good partner of you.
