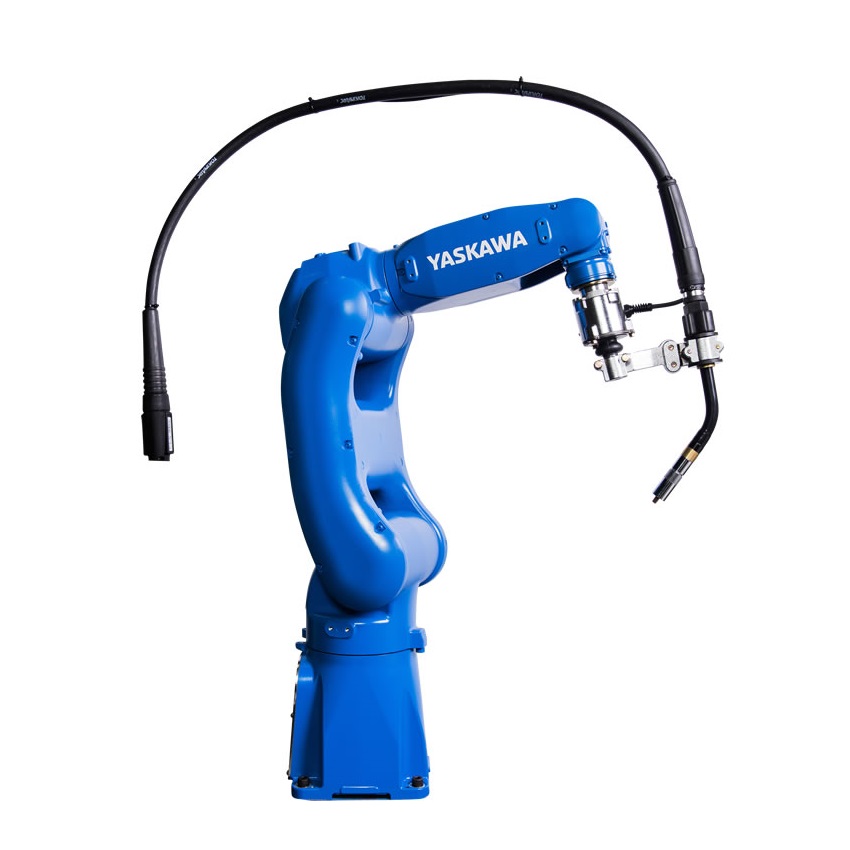

Industrial robot arm YASKAWA AR700 with 6 arm axis robot of mig welding robot
| Product Name | Industrial robot arm YASKAWA AR700 with 6 arm axis robot of mig welding robot |
| Model | AR700 |
| Application | Arc Welding tasks |
| Maximum reach | 727mm |
| Maximum payload | 8kg |
| Pose repeatability (ISO 9283) | ± 0.02mm |
| Number of axes | 6 |
| Mounting position | Floor, Wall, Ceiling |
| Weight | 32 kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |
| Motion range | |
| S | 170° to -170° |
| L | 145° to -65° |
| U | 190° tp -70° |
| R | 190° to -190° |
| B | 135° to -135° |
| T | 360° to -360° |
