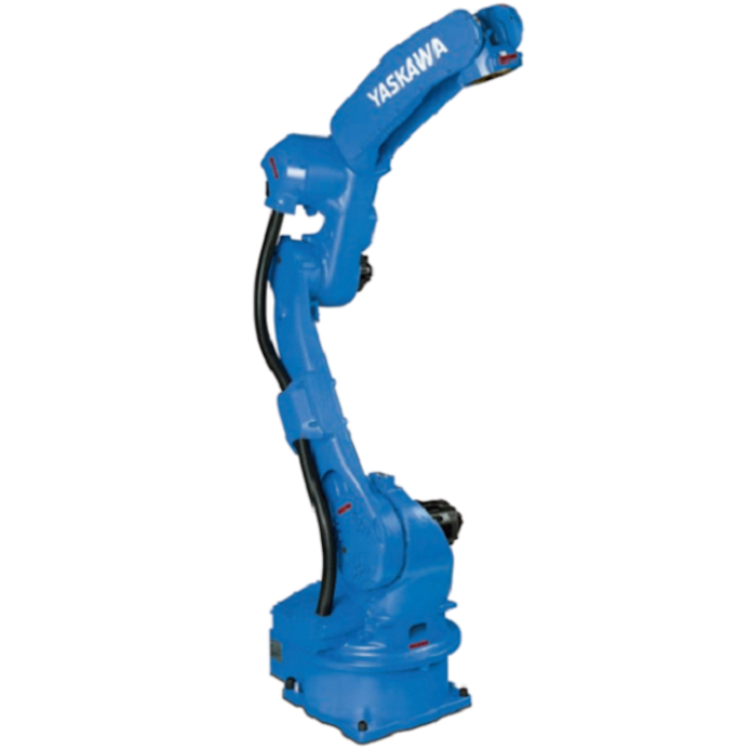

6 axis YASKAWA GP25 pick and place machine motoman robotics

6 axis robot arm YASKAWA GP25 pick and place machine 25kg Payload 1730mm Arm industrial robot



Main Specifications:

Model:GP25
Maximum reach:1730mm
Maximum payload:25kg
Pose repeatability:± 0.06mm
Number of axes:6
Weight:250 kg



Product Name	6 axis robot arm YASKAWA GP25 pick and place machine 25kg Payload 1730mm Arm industrial robot
Model	GP25
Application	Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place,
Maximum reach	1730mm
Maximum payload	25kg
Pose repeatability (ISO 9283)	± 0.06mm
Number of axes	6
Mounting position	Floor, Wall, Ceiling
Weight	250 kg
Protection rating	IP67
Controller	YRC1000 controller/ YRC1000micro Controller

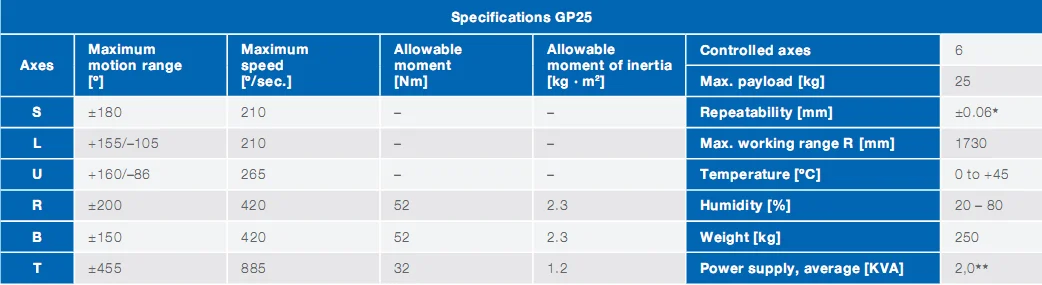

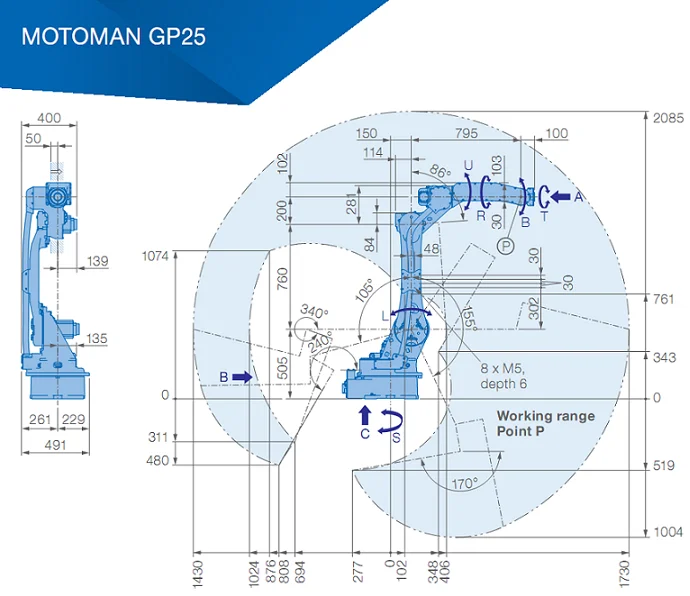

Motion range
S	180° to -180°
L	155° to -105°
U	160° tp -86°
R	200° to -200°
B	150° to -150°
T	455° to -455°

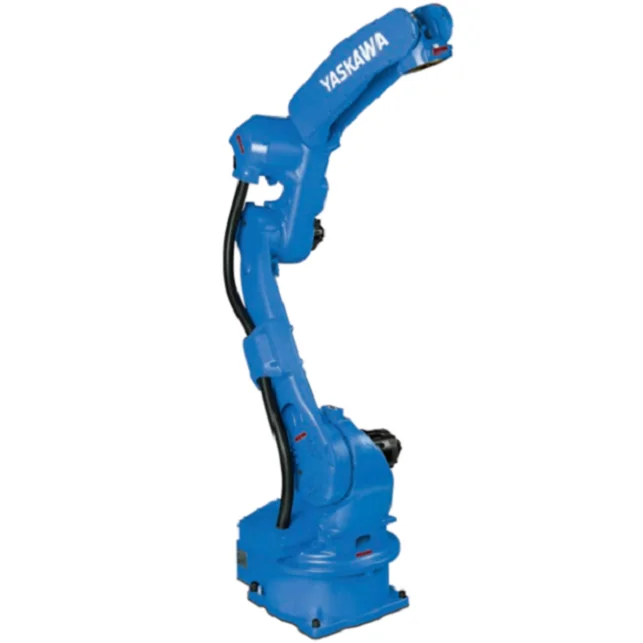

GP25 Introduction:

The MOTOMAN GP25 is a fast and precise 6-axis industrial robot with a payload capacity of up to 25 kg. With a reach of 1730 mm and a high repeatability of ±0.06mm, it is ideally suited to assembly tasks, but also universal handling tasks, CNC machine
tool tending or packaging. The streamlined modern industrial design minimizes the space requirements at the installation site.

Cable entry is optionally from the side at the pedestal or from underneath through the base plate, thus enabling space-saving and uncluttered integration into the environment, irrespective of the intended installation position. The prepared routing of
the supply lines in the arm enables optimal integration of the grippers or sensor systems, often dispensing with the need for an external media package. This reduces also interference contours.

A world of possibilities is open to the MOTOMAN GP25 robots with the numerous functions of the MOTOMAN YRC1000 controller. In conjunction with the conventional teach pendant, these robots are reliable mechanical engineering partners. With the innovative operator control concept of the SmartPendant, it provides an excellent point of entry into industrial automation.



As standard, the MOTOMAN GP25 are designed with the high protection classification IP67(wrist). Other variants of the MOTOMAN GP25 (e.g. with food-compatible grease in the food industry, special anti-corrosion coating for applications in aggressive ambient conditions, or as a cleanroom version) are optionally available.





KEY BENEFITS

Flexible, fast and powerful
Large working range: 1730 mm
Reduced interference contours due to optimized design
Simple commissioning and maintenance



Applications:
Assembly, Material Handling, Part Transfer, Pick and Pack, Pick and Place, IP65-67
