Industrial robot arm YASKAWA GP50 for pick and place 50kg Payload 2061mm Arm robots
Main Specifications:
Model:GP50
Maximum reach:2061mm
Maximum payload:50kg
Pose repeatability:± 0.07mm
Number of axes:6
Weight:570kg

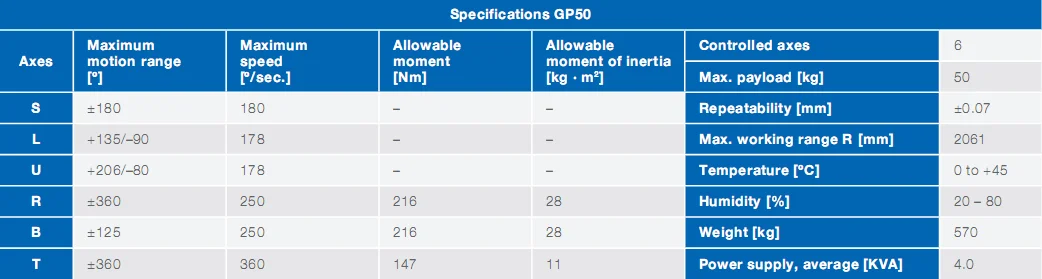

| Product Name | Industrial robot arm YASKAWA GP50 for pick and place 50kg Payload 2061mm Arm robots |
| Model | GP50 |
| Application | Handling & General Application |
| Maximum reach | 92061mm |
| Maximum payload | 50kg |
| Pose repeatability (ISO 9283) | ± 0.07mm |
| Number of axes | 6 |
| Mounting position | Floor, Ceiling, Wall, Tilt |
| Weight | 570kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller/ YRC1000micro Controller |

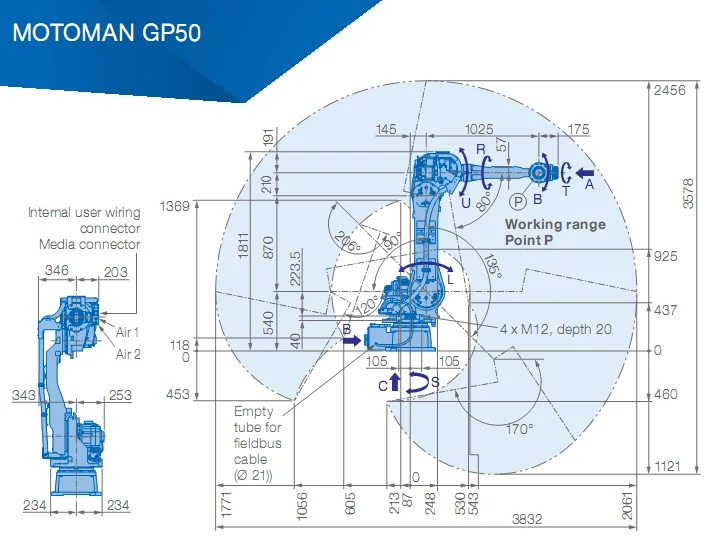

| Motion range | |
| S | 180° to -180° |
| L | 135° to -90° |
| U | 206° tp -80° |
| R | 360° to -360° |
| B | 125° to -125° |
| T | 360° to -360° |
GP50 Introduction:

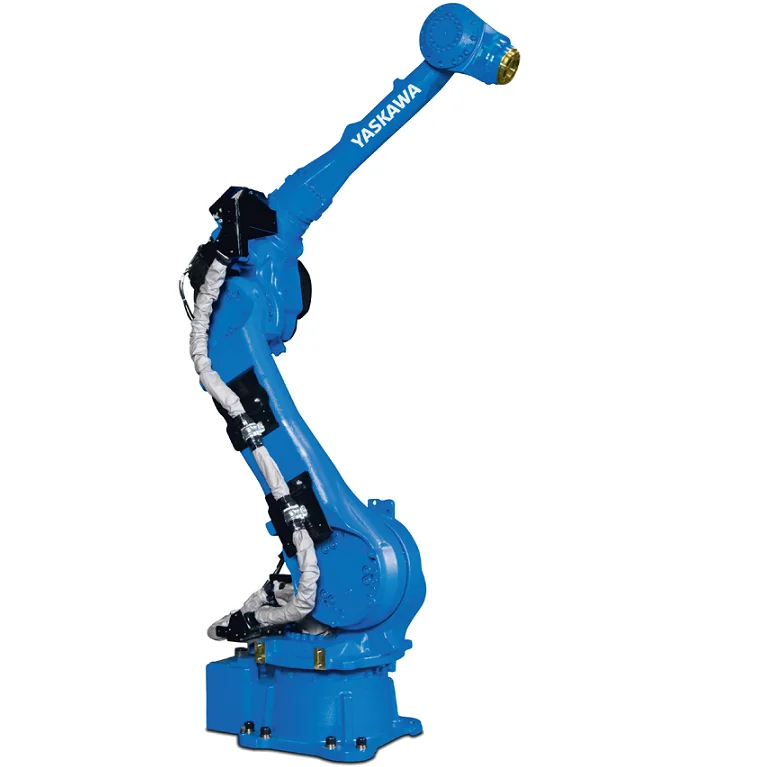

The MOTOMAN GP50 is a versatile, high speed 6-axis robot offering superior performance in material handling, machine tending, processing and dispensing applications.
Due to its compact design, the GP50 can be placed close to machines for loading and unloading of parts.
KEY BENEFITS
• Fast, flexible and reliable
• Ideal for a variety of applications, multi-purpose robot
• Robot with sleek design that requires minimal installation space
• 50 kg payload
Applications:
Handling & General Application
