Industrial robot arm YASKAWA GP180 for pick and place 180kg Payload 2702mm Arm robots
Main Specifications:
Model:GP180
Maximum reach:2702mm
Maximum payload:180kg
Pose repeatability:± 0.05mm
Number of axes:6
Weight:1020kg

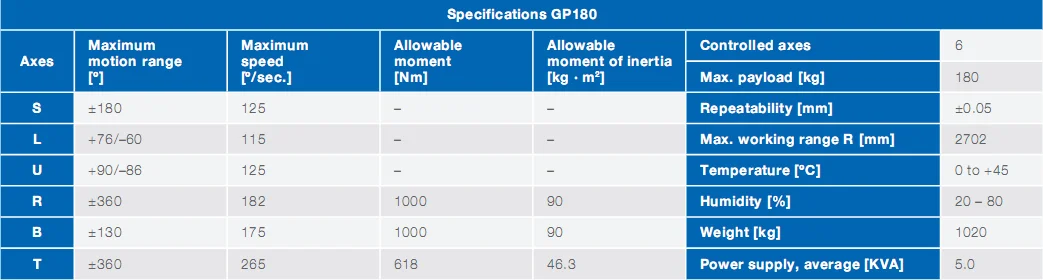

| Product Name | Industrial robot arm YASKAWA GP180 for pick and place 180kg Payload 2702mm Arm robots |
| Model | GP180 |
| Application | Handling & General Application |
| Maximum reach | 2702mm |
| Maximum payload | 180kg |
| Pose repeatability (ISO 9283) | ± 0.05mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 1020kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller |

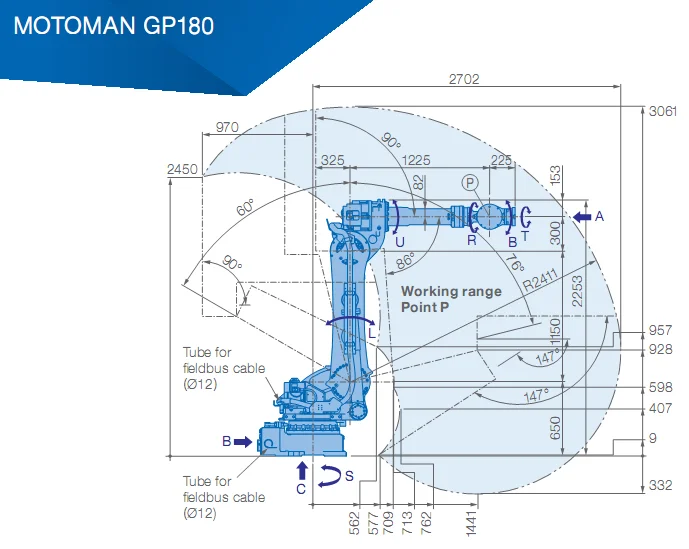

| Motion range | |
| S | 180° to -180° |
| L | 76° to -60° |
| U | 90° tp -86° |
| R | 360° to -360° |
| B | 130° to -130° |
| T | 360° to -360° |

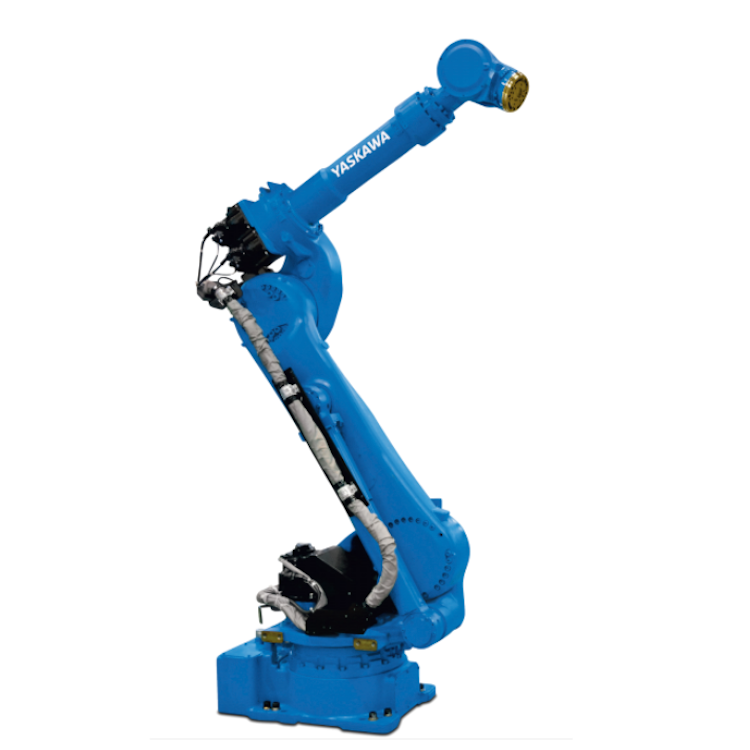

GP180 Introduction:
The 6-axis MOTOMAN GP180 is a versatile, high speed robot offering superior performance for a variety of applications, like material handling, machine and press tending.
Despite of providing a high payload of 180 kg and the wide motion range of 2702 mm, the MOTOMAN GP180 was designed with a width of 625 mm, therefore valuable floor space can be saved.
With the higher axis operation speed and speed reducer rigidity, a special vibration control system was developed. By reducing cycle times, this system realises high increases in productivity.
KEY BENEFITS
• Fast, flexible and powerful
• High payload: 180 kg
• Wide motion range: 2702 mm
• Maximum performance using minimal floor space
Applications:
Handling & General Application
