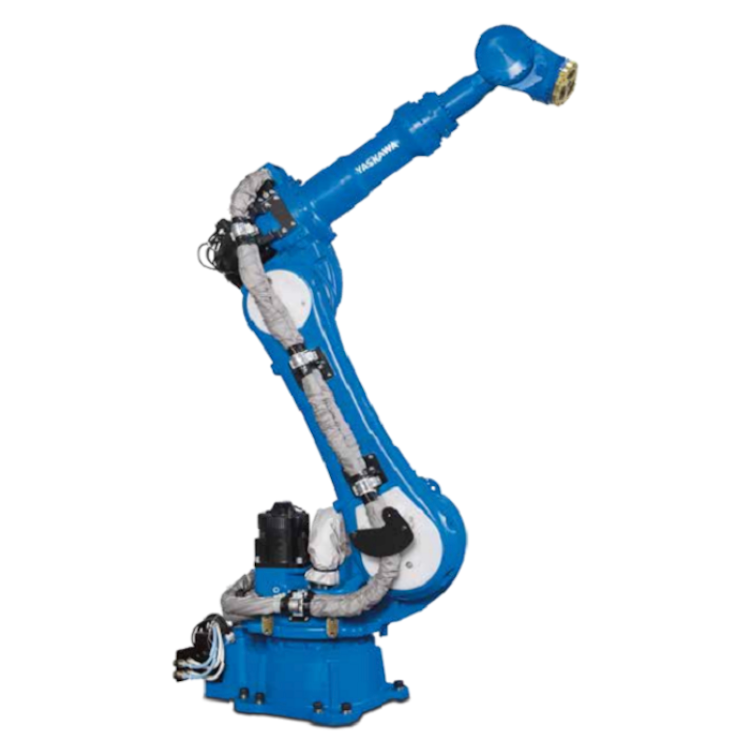

Industrial robot arm YASKAWA GP110 for pick and place 110kg Payload 2236mm arm robots

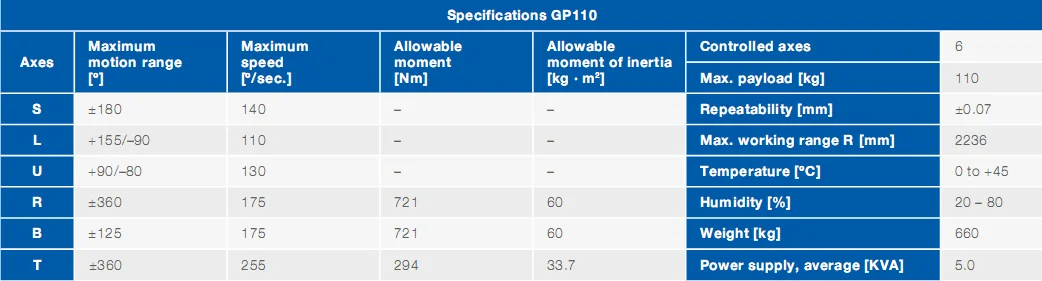

Main Specifications:
Model:GP110
Maximum reach:2236mm
Maximum payload:110kg
Pose repeatability:± 0.07mm
Number of axes:6
Weight:660kg
Product Name | Industrial robot arm YASKAWA GP110 for pick and place 110kg Payload 2236mm arm robots |
Model | GP110 |
Application | material handling, machine and press tending tasks |
Maximum reach | 2236mm |
Maximum payload | 110kg |
Pose repeatability (ISO 9283) | ± 0.07mm |
Number of axes | 6 |
Mounting position | Floor |
Weight | 660 kg |
Protection rating | IP67 |
Controller | YRC1000 controller/ YRC1000micro Controller |

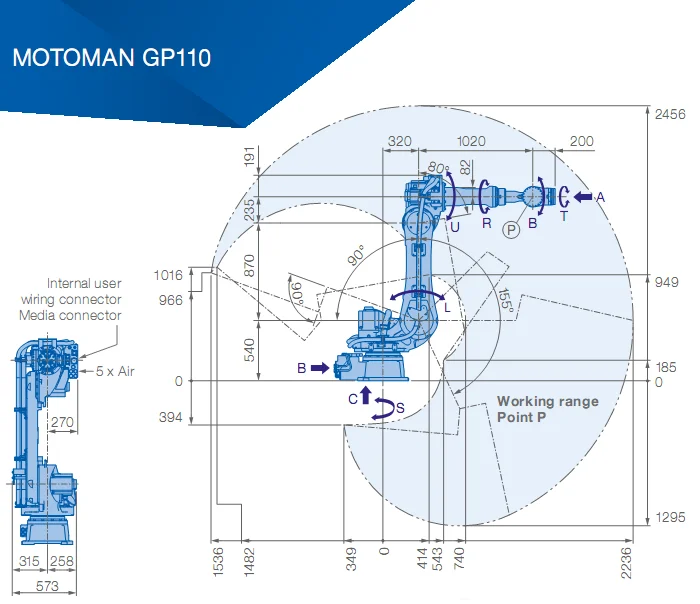

Motion range | |
S | 180° to -180° |
L | 155° to -90° |
U | 90° tp -80° |
R | 360° to -360° |
B | 125° to -125° |
T | 360° to -360° |

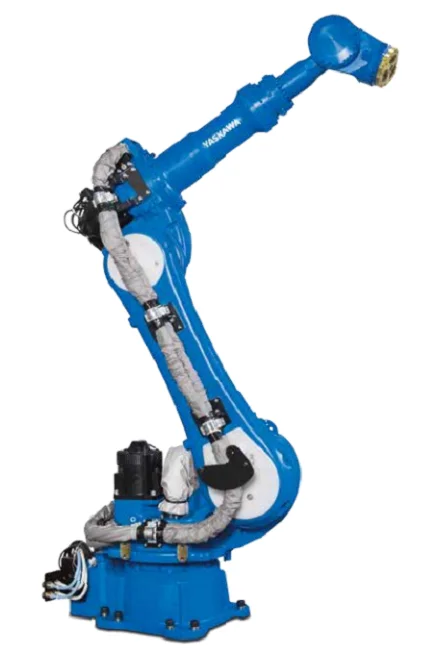

GP110 Introduction:
The 6-axis MOTOMAN GP110 is a versatile, high speed robot offering superior performance for a variety of applications, for example material handling, machine and press tending.
Despite of providing a wide motion range and high payload of 110 kg, the MOTOMAN GP110 has a streamlined design, which allows extremely close positioning of several robots. Also the slim cable inlet reduces the robots width, therefore valuable floor space can be saved.
The MOTOMAN GP110 is available with the PLd Category 3 Functional Safety Unit (FSU).
KEY BENEFITS
Fast and flexible
Wide motion range: 2236 mm
High payload: 110 kg
Compact design
Slim cable inlet
Enhanced safety functions
Applications:
for a variety of applications, like material handling, machine and press tending
