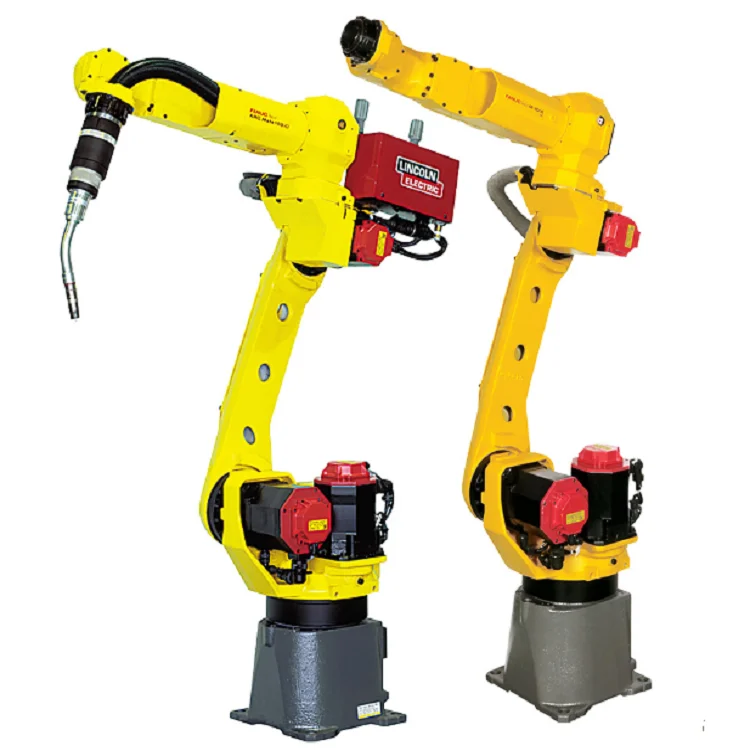

fanuc programmable mig welding robot arm RM-20iA industrial
| DESCRIPTION | ||
| Product name | programmable mig welding robot arm M-20iA industrial welding robot with IR vision industrial welding robot | |
| Model | M-20iA | |
| Controlled axes | 6 | |
| Reach | 1811mm | |
| Installation | Floor/Upside-down ,Angle mount | |
| Motion range | J1 | 340°/370° 5.93rad/6.45rad |
| J2 | 260° 4.54rad | |
| J3 | 458° 8.00rad | |
| J4 | 400° 6.98rad | |
| J5 | 360° 6.28rad | |
| J6 | 900° 15.71rad | |
| Max.load capacity at wrist | 20kg | |
| Allowable load moment at wrist | J4 | 44.0N.m |
| J5 | 44.0N.m | |
| J6 | 22.0N.m | |
| Allowable load inertia at wrist | J4 | 1.04kg.m2 |
| J5 |
1.04kg.m2 |
|
| J6 | 0.28kg.m2 | |
| Repeatability | ±0.03mm | |
| Mass |
250kg |
|
