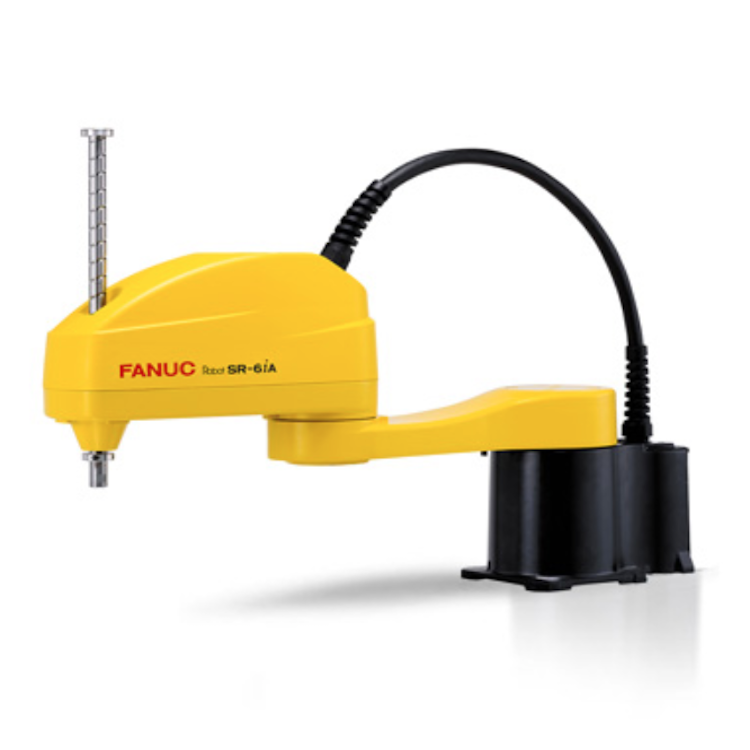

Robotic arm industrial Fanuc Sr-6iA payload 6 Kg scara robot arm 4 axis
Main Specifications:
Model SR-6iA
Robot footprint [mm] 180 x 258
Mounting position Floor
Controller R-30iB Plus
Voltage 50/60Hz 1phase [V] 200-230
Average power consumption [kW] 0.2

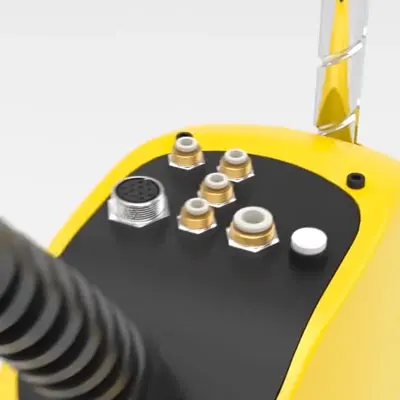

Integrated signals on upper arm In/Out 4 in and 4 out
| Model | SR-6iA |
| product name | Robotic arm industrial Fanuc Sr-6iA payload 6 Kg scara robot arm 4 axis |
| Robot footprint [mm] | 180 x 258 |
| Mounting position | Floor |
| Controller | R-30iB Plus |
| Voltage 50/60Hz 1phase [V] | 200-230 |
| Average power consumption [kW] | 0.2 |
| Integrated signals on upper arm In/Out | 4 in and 4 out |
| Integrated air supply | 3 |
| Integrated solenoid valve | 2 |
| Acoustic noise level [dB] | <70 |
| Ambient temperature [° C] | 0-45 |
| Body standard/optional | IP20 |
| Wrist & J3 arm standard/optional | IP20 |
| Max. push-down force (Newton) | 200 |
