Carton Box Making Machine ABB IRB 1600 as High effective Palletizer Robot for Cardboard Production Line

Specification

Product Name	Carton Box Making Machine ABB IRB 1600 as High effective Palletizer Robot for Cardboard Production Line
Model	ABB IRB1600
Application	• Assembly • Arc Welding • Material Handling • Machine Tending • Material Removal • Cleaning/Spraying • Dispensing • Packing
Maximum reach	1450mm
Maximum payload	10kg
Position repeatability	0.05mm
Number of axes	6
Mounting position	Floor, wall, shelf, tilted, inverted
Weight	250kg
Protection rating	Standard IP54 Option FoundryPlus 2 (IP67)
Controllers	IRC5 compact/IRC5 single cabinet
Relative humidity	Max. 95%
Safety	Double circiuts with supervisions, emergency stops and safety func tions, 3-position enable device
Emission	EMC/EMI shielded

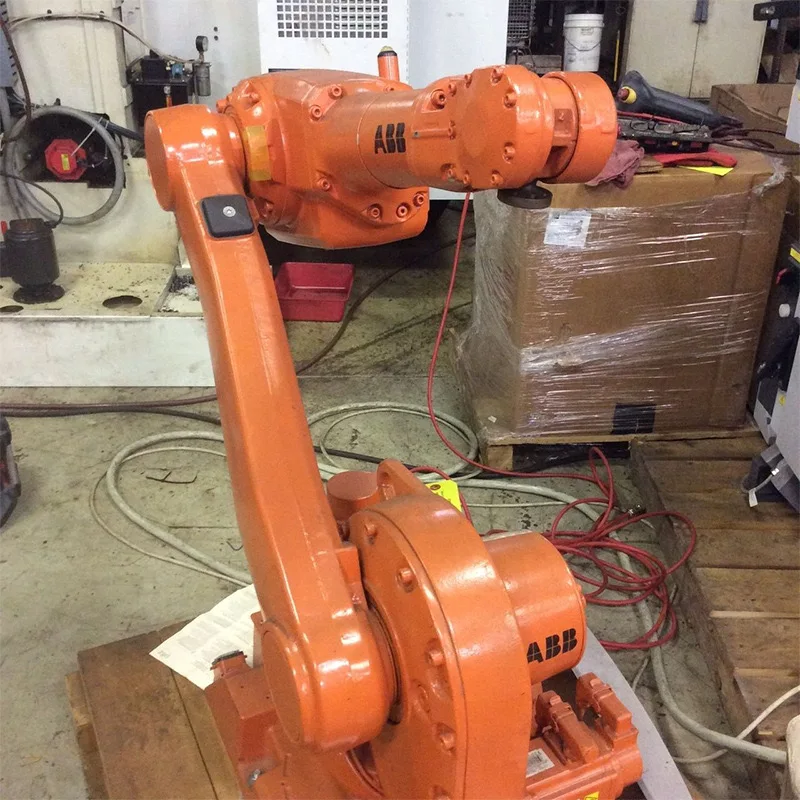

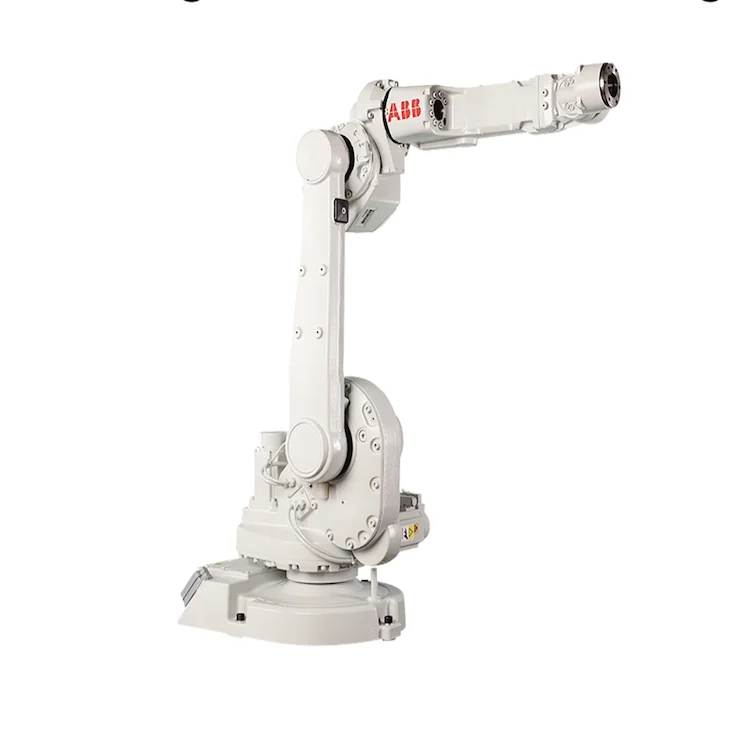

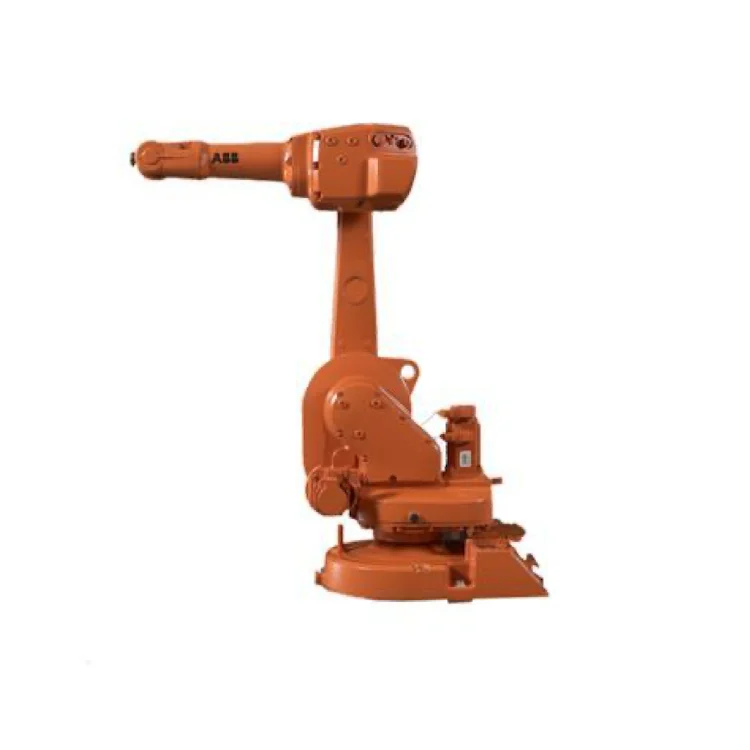

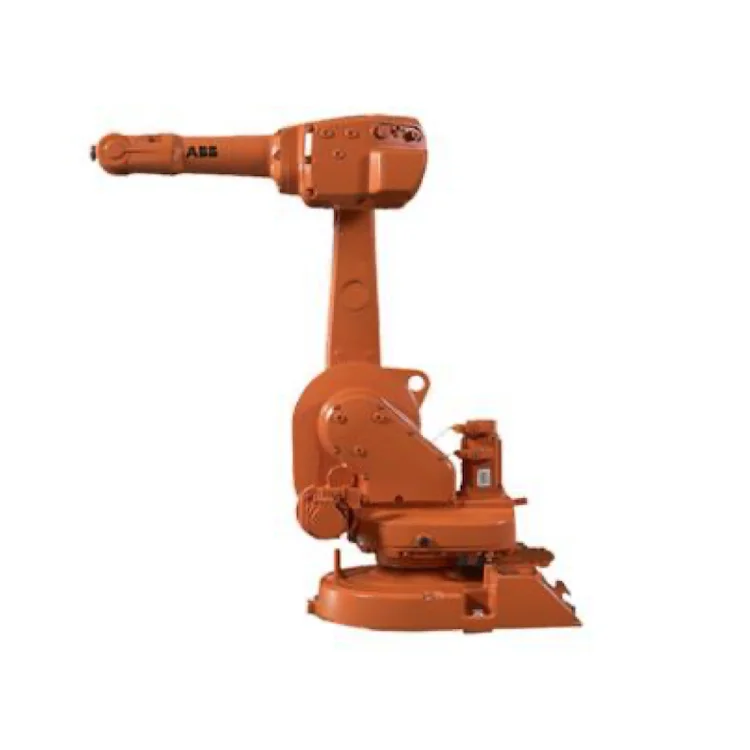

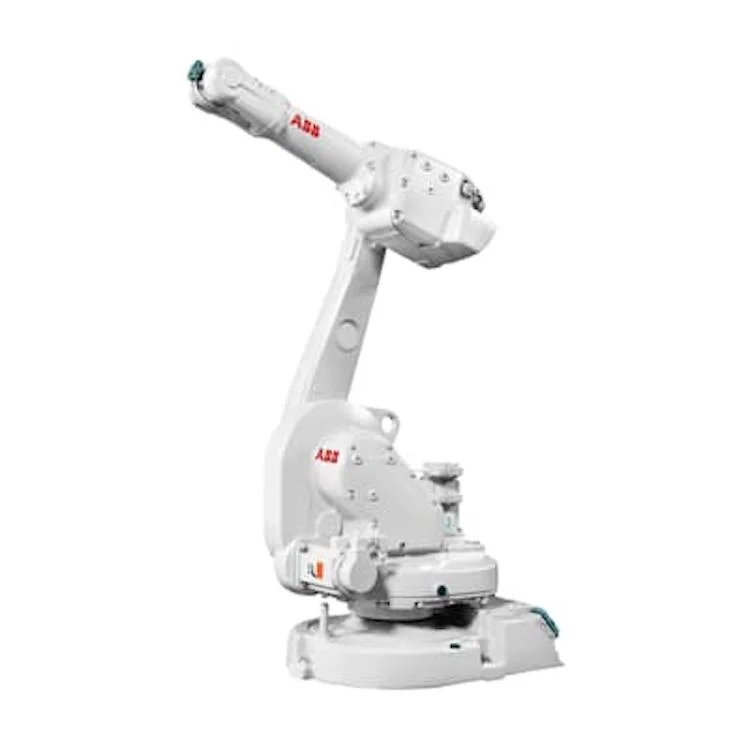

ABB IRB 1600 Introduction:

IRB1600

The highest performance 10 kg robot

Double your throughput

The IRB 1600 has up to 50 percent shorter cycle times than competing robots in material handling, machine tending and process applications. It speeds up and slows down faster than other robots, saving time while moving between tasks. This is possible

due to ABB’s patented second generation QuickMove motion control, combined with the robot’s strong motors and low friction losses in the spur gears.

No more cutting corners

At high speed, most robots will cut corners. With the IRB 1600, the path will be the same regardless of speed, thanks to the robot’s unique combination of brains and brawn. Intelligent second generation TrueMove motion control means that ”what-you

program-is-what-you-get”. Add muscle – a heavy and stiff design – low vibrations and low friction – and you have a robot that will deliver consistently high work piece quality, high yield and few rejects.

Outstanding reliability

The IRB 1600 offers outstanding reliability, even in the toughest environments and the most demanding 24/7 duty cycles. The entire manipulator is IP 54 classed and sensitive parts are IP 67 classed as standard. The optional protection Foundry Plus offers IP 67,

special paint, rust protection and is tailor made for tough foundry environments. The rigid and heavy design combined with spur gears, make the robot extremely robust. Smart collision detection software further adds to the robot’s outstanding reliability.

Easy to integrate

Mounting is fully flexible: on a shelf, on the wall, tilted or inverted. By choosing the compact shortarm version with the 1.2 m reach, you can even fit the IRB 1600 inside a machine, while ensuring sufficient payload as the maximum total load is as high as 36kg. Sustainable and healthy Low friction spur gears, and no unnecessary moves due to QuickMove and TrueMove, reduces power consumption down to 0.58 kW at max speed, and even less at low speeds. The airborne noise level of just <70 dB (A) secures a

healthy sound environment.

Main applications

• Assembly

• Arc Welding

• Material Handling

• Machine Tending

• Material Removal

• Cleaning/Spraying

• Dispensing

• Packing
