14 axis world's first collaborative robot ABB YuMi IRB14000 dual arm robot automation robotic
Main Specifications
Model:YuMi IRB14000
Maximum reach:559 mm
Maximum payload:0.5 kg
Pose repeatabilit: ± 0.02 mm
Number of axes :14
Weight:38 kg
Protection rating:Std: IP30 and Clean Room
| Production Name | ABB YuMi IRB14000 dual arm robot |
| Model | YuMi IRB14000 |
| Application | small parts automation robot arm |
| Maximum reach | 599 mm |
| Maximum payload | 0.5 kg |
| Pose repeatability (ISO 9283) | ± 0.02 mm |
| Number of axes | 14 |
| Mounting position | table |
| Footprint | 399 x 496 mm |
| Weight | 38 kg |
| Protection rating | IP30 and Clean Room |
| Controller | integration |

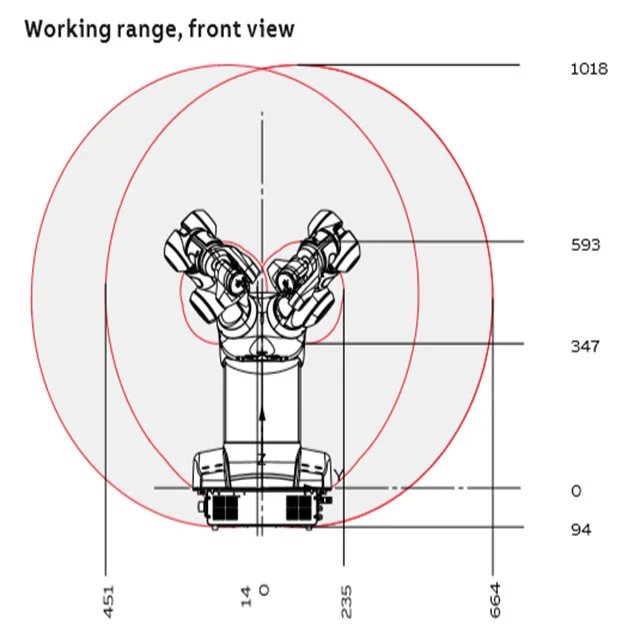

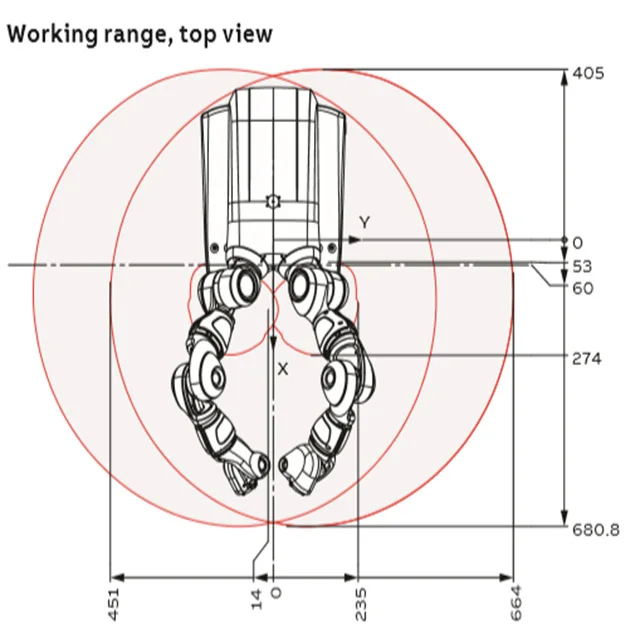

| Motion range | |
| A1 | +168.5° to -168.5° |
| A2 | -143.5 °to +43.5° |
| A7 | +168.5° to -168.5° |
| A3 | -123.5° to +80° |
| A4 | -290° to +290° |
| A5 | -88° to +138° |
| A6 | -229° to +229° |
