6 axis robot arm YASKAWA GP88 pick and place machine 88kg Payload 2236mm arm industrial robot
Main Specifications:
Model:GP88
Maximum reach:2236mm
Maximum payload:630kg
Pose repeatability:± 0.07mm
Number of axes:6
Weight:630kg

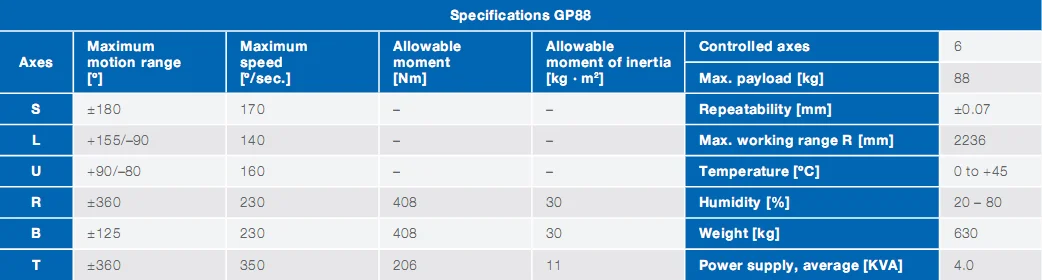

| Product Name | 6 axis robot arm YASKAWA GP88 pick and place machine 88kg Payload 2236mm arm industrial robot |
| Model | GP88 |
| Application | Handling & General Application |
| Maximum reach | 2236mm |
| Maximum payload | 88kg |
| Pose repeatability (ISO 9283) | ± 0.07mm |
| Number of axes | 6 |
| Mounting position | Floor |
| Weight | 630kg |
| Protection rating | IP67 |
| Controller | YRC1000 controller |

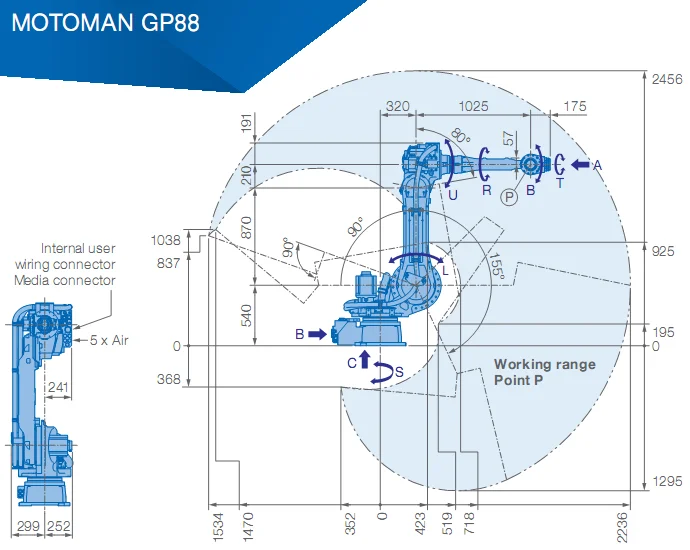

| Motion range | |
| S | 180° to -180° |
| L | 155° to -90° |
| U | 90° tp -80° |
| R | 360° to -360° |
| B | 125° to -125° |
| T | 360° to -360° |
GP88 Introduction:

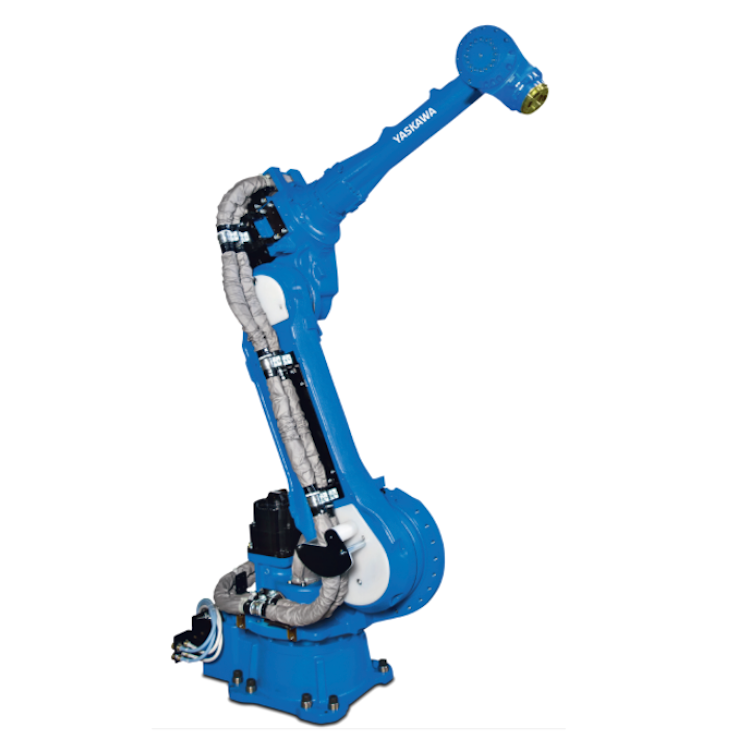

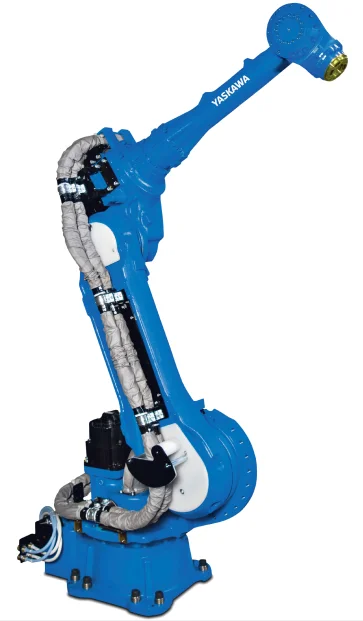

The MOTOMAN GP88 is a versatile high speed 6-axis robot, providing a high payload of up to 88 kg. It offers superior performance in material handling, machine tending, processing and dispending applications.
Despite its slim body, the MOTOMAN GP88 features a wide work envelope with a small interference radius. Thereby it can be placed close to machines for loading and unloading of parts, which reduces the required floor space to a minimum.
KEY BENEFITS
• Flexible and powerful (payload of 88 kg)
• High axis speeds

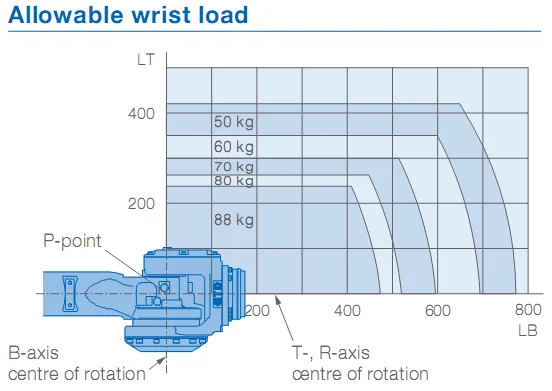

• Improved wrist ratings provide higher handling capacity
• Small interference radius reduces floor space requirements
Applications:
Handling & General Application
